Transmissions: general service and repair manuals (1/2)

Transmission automatique

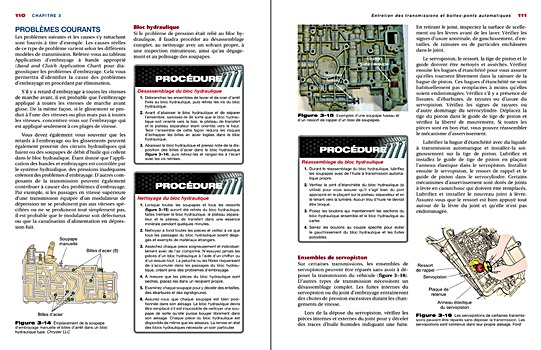

The "Mécanique automobile: diagnostic et réparation" series is a collection of French-language books on theory, system testing, failure diagnosis, and repair techniques for cars and light trucks.

This volume covers automatic transmissions.

Contents:

1 - Automatic Transmissions and Transaxles
Torque converter / Lock-up torque converter / Planetary gear sets / Compound planetary gear sets / Honda's non-planetary transmission / Continuously variable transmissions (CVT) / Planetary gear controls / Transmission clutches / Bearings, bushings, and thrust washers / Snap rings / Seals and gaskets / Final drive gears and differentials / Hydraulic systems in transmissions / Pressure regulation / Shift quality / Hydraulic circuits

2 - Electronic Automatic Transmissions
Transmission control module / Hybrid vehicle transmissions / Basic test of an electronic automatic transmission / Torque converter clutch control diagnosis / Input signal verification / Actuator testing

3 - Maintenance of Automatic Transmissions and Transaxles
Identification / Diagnostics / Fluid leaks / Road test / Torque converter inspection / Hydraulic control system diagnosis and pressure tests / Common issues / Linkages.

Product details

Boîtes de vitesses automatiques et robotisées (Tome 1) - Manuel d'entretien et de diagnostic

A repair manual with all the information to carry out maintenance and repair of automatic and robotized gearboxes (DSG, EDC, etc.).

A complete study per vehicle
- Location of components
- Wiring diagrams
- Diagnosis
- Repair methods.

Covers the following models (9 makes, 20 models, 701 versions):
- Audi A3 diesel (O8/1998-06/2003)
- BMW Series 3 (E46) (04/1998-10/2001)
- Fiat Punto petrol 11/1999-05/2003)
- Ford Focus petrol (10/1998-09/2004)
- Nissan Primera (1995-03/2002)
- Opel Corsa C (10/2000-09/2006)
- Opel Astra C (04/1998-12/2006)
- Opel Vectra C (06/2002-06/2007)
- Opel Omega Diesel (1994-1999)
- Renault Twingo petrol (02/2001-06/2007)
- Renault Clio 2 petrol (06/2001-07/2006)
- Renault Mégane 1 Phase 2 Diesel 03/1999-10/2002)
- Renault Mégane 2 petrol (since 10/2002)
- Renault Laguna 1 Phase 2 petrol and Diesel (04/1998-11/2000)
- Renault Espace 4 Diesel (09/2002-03/2006)
- Toyota Yaris petrol and Diesel (03/2003-12/2005)
- Volkswagen Golf 4 (01/1998-05/2004)
- Volkswagen Passat (10/1996-10/2000)
- Volkswagen Passat (05/2002-09/2005).

Product details

Boîtes de vitesses automatiques et robotisées (Tome 2) - Manuel d'entretien et de diagnostic

A repair manual with all the information to carry out maintenance and repair of automatic and robotized gearboxes (DSG, EDC, etc.).

A complete study per vehicle
- Location of components
- Wiring diagrams
- Diagnosis
- Repair methods.

Covers the following models (9 makes, 20 models, 701 versions):

Alfa Romeo
159 (03/2006 >)
- 1.9 JTD 150 16V Turbo FAP (ll0 kW)- 939A2000 - A6
- 2.4 JTD 200 L5 20V Turbo FAP (147 kW) - 939A3000 - A6

BMW
Série 1 (E87) (01/2007 >07/2011)
- 2.0 D (118) 143 16V Turbo (105 kW) - N47D20A - A6
- 2.0 D (120) l6V Turbo (130 kW) - N47D020A - A6

X3 II (F25) (09/2010>)
- 2.0D 184 16V Turbo 4x4 (135 kW) - N47D20C - A8

Citroën
C4 Picasso (10/2006 >)
- 1.6 HDi 110 16V Turbo FAP (80 kW) - 9HZ/9H01 - R6
- 2.0 HDi 136 16V Turbo FAP (100 kW) - RHR/RH01 - A6
- 2.0 HDi 138 16V Turbo FAP (100 kW) - RHJ - R6

Nemo (01/2008 >)
- 1.4 HDi 70 8V Turbo AV (50 kW) - 8HS - R5

Fiat
500 II (07/2007 >)
- 1.2i 70 8V (51 kW) - 169A4000 - R5
- 1.4i 100 16V (74 kW) - 169A3000 - R6

Croma II (01/2008>)
- 1.9 JTD 150 16V Turbo FAP (110 kW) - 939A2000 - A6

Mercedes-Benz
Classe C III (W204) (01/2007 >12/2010)
- 2.2 CDI (200) 135 16V Turbo FAP (100 kW) - 646811 - A5
- 2.2 CDI (220) 170 16V Turbo FAP (125 kW) - 646811 - A5

Opel
Corsa IV (D) (09/2006 >12/2010)
- 1.2i 80 16V (59 kW) - Z12XEP - R5
- 13 CDTI 90 16V Turbo (66 kW) - Z13DTH - R6

Peugeot
3008 (04/2009 >)
- 1.6 HDi 112 8V Turbo FAP (82 kW) - 9HR/9H05 - R6

Renault
Trafic II (08/2006 >)
- 2.0 dCi 115 16V Turbo AV (84 kW) - M9R-780 - R6
- 2.0 dCi 115 16V Turbo AV (84 kW) - M9R-782 - R6
- 2.0 dCi 115 16V Turbo AV (84 kW) - M9R-784 - R6

Smart
ForTwo II (04/2007 >)
- 1.0i 60 12V (45 kW) - 132910 - R5
- 1.0i 70 12V (52 kW) - 132910 - R5
- 1.0i 85 12V Turbo (62 kW) - 132930 - R5

Volkswagen
Golf VI (10/2008 >)
- 1.4 TSI 122 16V Turbo (90 kW) - CAXA - R7 (DSG)

Tiguan (11/2007 >04/2011)
- 2.0 TDI 136 16V Turbo 4x4 FAP (100 kW) - CBAA - A6.

Product details

Transmisiones Automáticas Continuamente Variables - CVT: Incluye operación y pruebas

This book represents an extensive project that required significant time and effort. By disassembling various transmissions, essential resources such as photos and diagrams were gathered to develop this unique CVT series. The information presented here is not available anywhere else.

Unlike CVT-specific service manuals that focus on repair, this book provides crucial operating procedures and details to guide you through repairs effectively. This unique training resource offers a complete understanding of CVTs.

This Spanish manual benefits automotive technicians, hobby mechanics, and those interested in understanding this technology. It is also valuable for consumers who wish to explore CVT technology, offering a detailed look at its operation and origin.
Content ranges from basic operation to advanced aspects such as hydraulic control, belt-to-pulley attachment, stepper motor, and more, providing an in-depth understanding of CVTs.

Product details
